Generation 5 Electronics


software

Building on decades of experience, Gen5 electronics increase sensor accuracy, data rate and on-instrument data storage size, as well as introducing our new easy-to-use universal controller – the Command Unit.

MultiNets, Multi Water Samplers, Depth Meters, NetProbes, Single-& Twin-Fire-Modules will now be delivered with Gen5 electronics.

If you own a Gen4 Device and are interested in the new capabilities, please contact us about upgrade options!


Gen5 Electronics
Gen4 Electronics
Controller
Command Unit
graphical backlit screen
19” Deck Command Unit or
Hand Unit
4 line text display
Sensor data rate
1Hz, 2Hz, 4Hz, 10Hz
user adjustable
1Hz
fixed
Data Memory
128 Mbyte
~3400hours of recording for a Multi Water Sampler @ 1Hz
4 or 16 Mbyte
~450 hours of recording for a Multi Water Sampler @1Hz
Pressure sensor
0.02% f.s. initial accuracy
24bit ADC
0.1% f.s. initial accuracy
16bit ADC
Conductivity sensor
0.007 mS/cm initial accuracy
24bit ADC
0.01 mS/cm initial accuracy
20bit ADC
Temperature sensor
0.004 °C initial accuracy
24bit ADC
0.005 °C initial accuracy
20bit ADC
Inclinometer (angle sensor)
always included
1° accuracy
optional product for MultiNet only
1° accuracy
Flow meter
0.01m/s resolution
0.1 m/s resolution
Compatibility
Command Unit interchangeable between Gen5 MultiNets, Multi Water Samplers, Depth Meters, NetProbes, Single-& Twin-Fire-Modules
19” Deck Command Unit only works with the device it has been supplied with
Language Support
German, English, French, Spanish, Italian, Portuguese
English and limited German
software

Thanks to its backlit, transflective LCD and intuitive soft button design, the Command Unit can be operated at night, in bright sunlight, indoors, outdoors and with gloves on as well as in arctic and very hot environments.

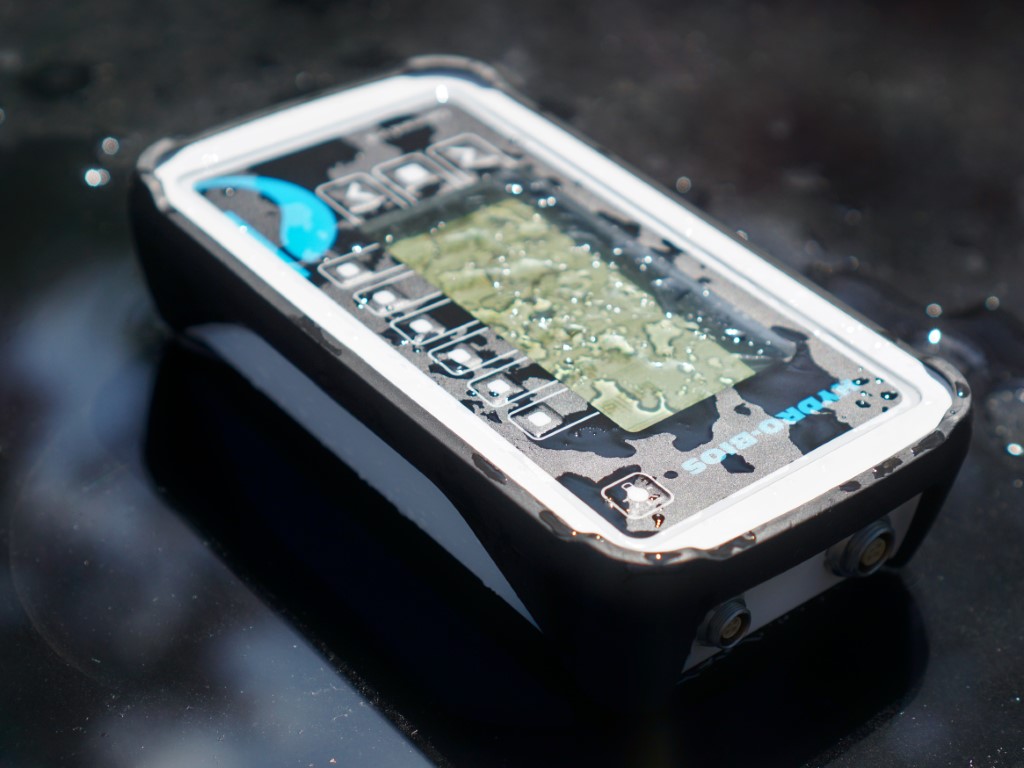

The Command Unit is rugged, sunlight readable and splash proof (IP65). Use it to control your instrument or sampler and run maintenance functions on deck without the need for a laptop.It is interchangeable between Gen5 MultiNets, Multiple Water Samplers, Depth Meters, NetProbes, Single- and Twin-Fire-Modules as it will automatically read the connected instrument’s capabilities and display corresponding functions.

Increase sensor data rate to enable faster winch speeds and / or higher spatial resolution. After all, ship time is expensive. Or decrease data rate to save storage space.

software
software

Is an underwater data connection available? The Command Unit will act as an interface between the telemetry signal on the winch cable and the PCs USB port. It will get a bidirectional signal through cables over 10 km long using only 3.3 Volts, even at full 10 Hz data rate.

Are you deploying without an online telemetry / data connection?

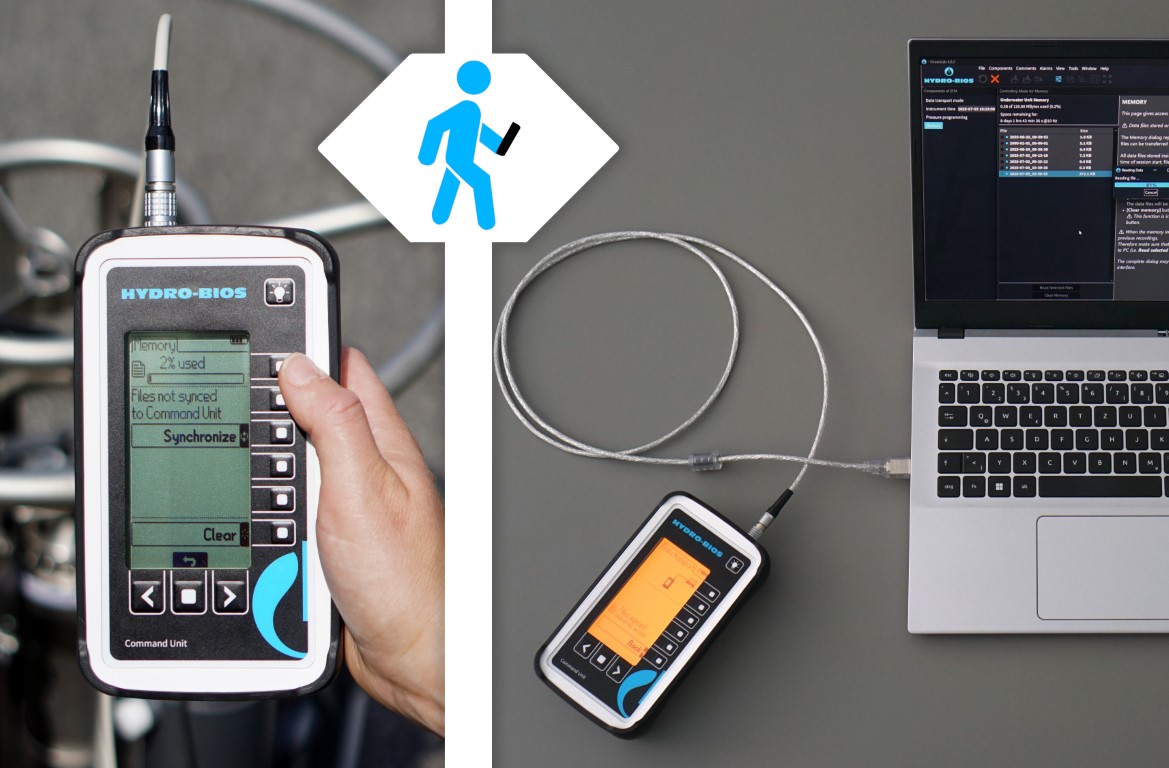

Use a PC with OceanLab or the Command Unit to first program automatic sample triggering and transfer recorded data after deployment. When the instrument is on deck and the PC is far away in the dry lab, use the Command Units data transport mode to transfer data and programming setups between sampler and PC.
